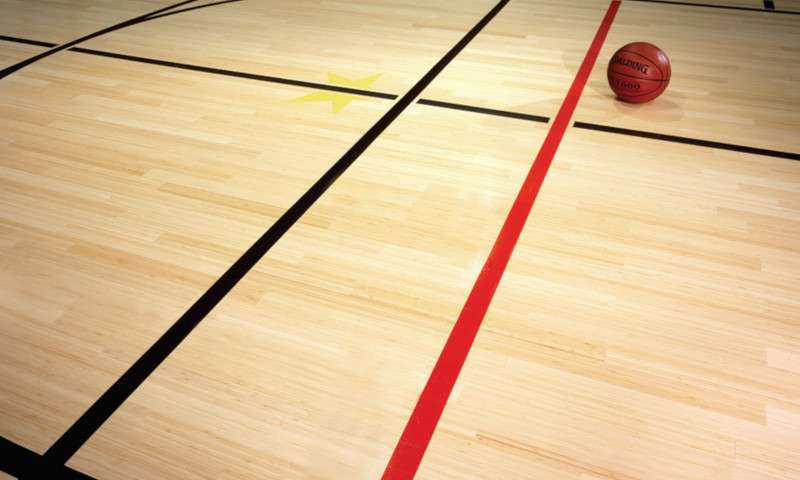

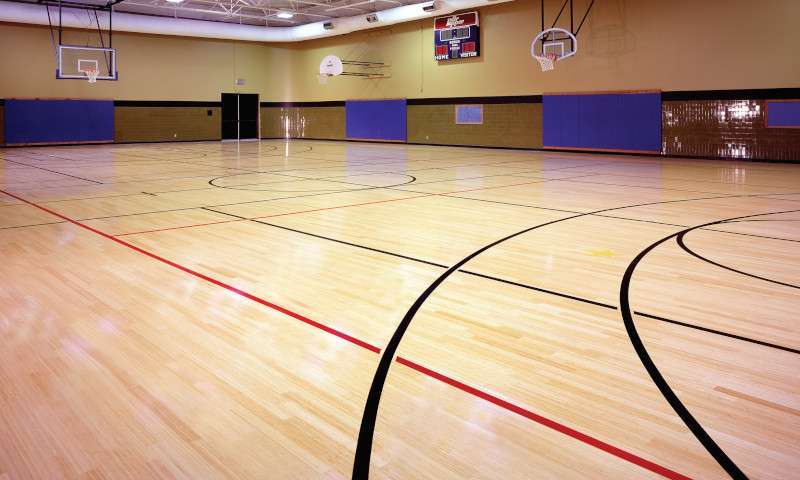

Recreation center at Singing Hills featuring PlybooSport
Recreation center at Singing Hills featuring PlybooSport

Singing Hills

Industry:
Recreation Center
Location:
Dallas, Texas
Architect:
City of Dallas
The City of Dallas Parks and Recreation chose PlybooSport for their Singing Hills Recreation center. The installation was so successful, they decided to install bamboo in their other six centers. "PlybooSport has a consistent, appealing visual (brighter than maple), its formaldehyde free content pushes forward our mission to promote healthier lifestyles within the community, and the rapidly renewable properties of bamboo are well-aligned with the [city's] green initiatives." says Stefan Kesler, Project Manager, City of Dallas. Three other centers are now complete with the remainder scheduled for completion in 2013. Download Printable Version
Industry:
Recreation Center
Location:
Dallas, Texas
Architect:
City of Dallas
The City of Dallas Parks and Recreation chose PlybooSport for their Singing Hills Recreation center. The installation was so successful, they decided to install bamboo in their other six centers. "PlybooSport has a consistent, appealing visual (brighter than maple), its formaldehyde free content pushes forward our mission to promote healthier lifestyles within the community, and the rapidly renewable properties of bamboo are well-aligned with the [city's] green initiatives." says Stefan Kesler, Project Manager, City of Dallas. Three other centers are now complete with the remainder scheduled for completion in 2013. Download Printable Version
Industry:
Recreation Center
Location:
Dallas, Texas
Architect:
City of Dallas
The City of Dallas Parks and Recreation chose PlybooSport for their Singing Hills Recreation center. The installation was so successful, they decided to install bamboo in their other six centers. "PlybooSport has a consistent, appealing visual (brighter than maple), its formaldehyde free content pushes forward our mission to promote healthier lifestyles within the community, and the rapidly renewable properties of bamboo are well-aligned with the [city's] green initiatives." says Stefan Kesler, Project Manager, City of Dallas. Three other centers are now complete with the remainder scheduled for completion in 2013. Download Printable Version
Recreation center at Singing Hills featuring PlybooSport
Recreation center at Singing Hills featuring PlybooSport
Specifications

Materials

PlybooSport Natural Edge Grain Bamboo Flooring

PlybooSport Natural Edge Grain Bamboo Flooring

FL-V34 72SFN-NAUF/FSC

Possible LEED Credits:

Low emitting materials and certified wood
Floorscore certified

Singing Hills
PlybooSport Flooring

Dimensions:

3/4” x 2 1/4” x 72” – 19mm x 55mm x 1830mm

Installation:

Floating kresilient, resilient sleeper or filxed resilient

ASTM E648:Critical Radiant Flux:

Class 1

ASTM D1037: Dimensional Stability

Linear Expansion: Parallel -0.04%, Perpendicular -0.10%,
Thickness Swell -0.13%, Hardness (Janka Ball Test): 1750 lbf average

ASTM 4442: Moisture Content

6-9% average

ASTM D5116: Organic Emission
(CA Section 01350)

Classroom scenario/Office scenario: mnb v

EN 14904
BS-EN 14904
DIN 18032-2
(Order of results: Average)

i. Multi-Use W
• Ball Rebound: 96% average • Force Reduction: 54% average
• Vertical Deflection: 2.8mm average • Area Indentation: 15% average
• Rolling Load (1500N; 337 lbf): Pass
ii. Pro B
• Ball Rebound 97% average • Force Reduction: 46% average
• Vertical Deformation: 2.1mm average • Rolling Load (1500N, 337 lbf): Pass
iii. Soft Touch Y
• Ball Rebound: 90% average • Force Reduction: 62% average
• Vertical Deformation: 3.5mm average • Rolling Load (1500N; 337 lbf): Pass

PlybooSport Underlayment System

Dimensions

1/4” x 4’ x 50’ – 1 lb/sqft

ASTM E492: Sound Impact Insulation
ASTM E989: Sound Impact Insulation

54 (over 6” concrete)
58 (over 6” concrete/6” fiberglass)

ASTM D3676: Density Pounds/cubic foot

45lbs/ft3

ASTM D2240: Durometer

45 +/- 2 Shore A Hardness

ASTM D5116: VOC’s
Closed Chamber 1.0m +/- .05 m/3

SCQQMD

DOC-FF 170: Flammability

Passed
