Industry: Retail

Retail space featuring Strand bamboo plywood and Plyboo Neapolitan Retail space featuring Strand bamboo plywood and Plyboo Neapolitan
Retail space featuring Strand bamboo plywood and Plyboo Neapolitan Retail space featuring Strand bamboo plywood and Plyboo Neapolitan
Retail space featuring Strand bamboo plywood and Plyboo Neapolitan
Retail space featuring Strand bamboo plywood and Plyboo Neapolitan

Misura, Men's Apparel

Industry:
Retail
Location:
Las Vegas, Nevada
Architect/Designer:
Marshall Retail Group

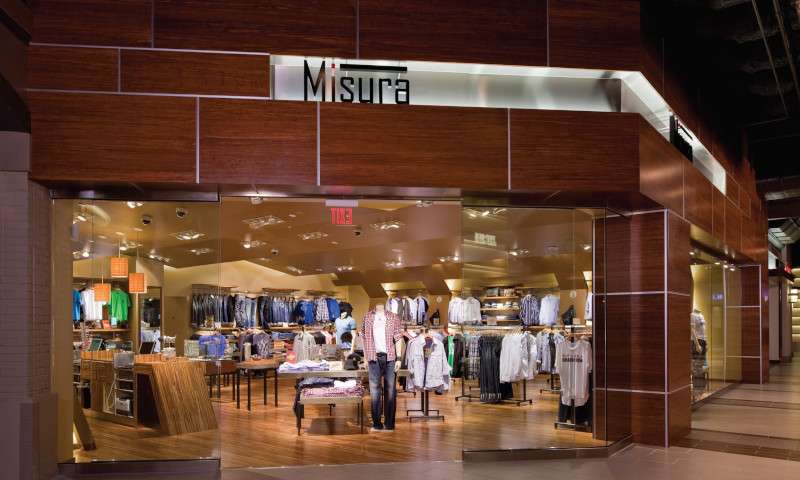

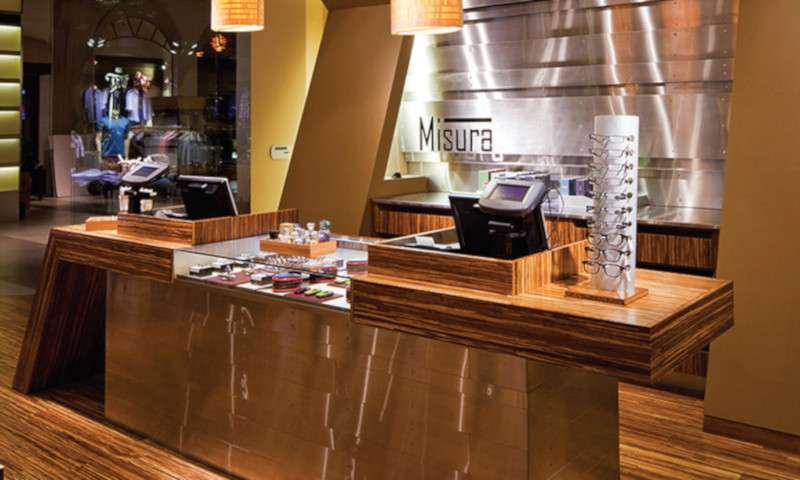

This wonderful retail space was a celebration of the various looks in strand bamboo products. Havana strand bamboo plywood was used on the exterior cladding as well as to the face of decorative support columns of this apparel retailer. Once inside the store, display areas, shelving and built-in cabinetry were fabricated with Plyboo Neopolitan strand plywood. Neopolitan strand flooring was also used to create a monolith tonal effect in the space. The design was then finished off with custom end grain bamboo veneer covered lighting. Download Printable Version
Industry:
Retail
Location:
Las Vegas, Nevada
Architect/Designer:
Marshall Retail Group
This wonderful retail space was a celebration of the various looks in strand bamboo products. Havana strand bamboo plywood was used on the exterior cladding as well as to the face of decorative support columns of this apparel retailer. Once inside the store, display areas, shelving and built-in cabinetry were fabricated with Plyboo Neopolitan strand plywood. Neopolitan strand flooring was also used to create a monolith tonal effect in the space. The design was then finished off with custom end grain bamboo veneer covered lighting. Download Printable Version
Industry:
Retail
Location:
Las Vegas, Nevada
Architect/Designer:
Marshall Retail Group
This wonderful retail space was a celebration of the various looks in strand bamboo products. Havana strand bamboo plywood was used on the exterior cladding as well as to the face of decorative support columns of this apparel retailer. Once inside the store, display areas, shelving and built-in cabinetry were fabricated with Plyboo Neopolitan strand plywood. Neopolitan strand flooring was also used to create a monolith tonal effect in the space. The design was then finished off with custom end grain bamboo veneer covered lighting. Download Printable Version
Retail space featuring Strand bamboo plywood and Plyboo Neapolitan
Retail space featuring Strand bamboo plywood and Plyboo Neapolitan
Specifications

Materials

Havana Strand Bamboo Plywood

Havana Strand Bamboo Plywood

BP-4872PD-NAUF /FSC
Neopolitan Strand Bamboo Plywood

Neopolitan Strand Bamboo Plywood

BP-4872NEO-NAUF /FSC
Neopolitan Strand Bamboo Flooring

Neopolitan Strand Bamboo Flooring

FL-P3836NEO-NAUF /FSC

Possible LEED Credits:

Low emitting materials and certified wood
Floorscore certified

Misura, Men’s Apparel
Strand Bamboo Plywood

Dimensions:

3/4” x 48” x 96”
19mm x 1219mm x 2438mm (*mm tolerance +/- .5mm thickness)

Construction:

Three-ply, cross core construction.

Working with Plyboo:

A worksheet is provided with each panel containing useful tips and
information and is also available on our website at plyboo.com/
downloads.

ASTM E84: Surface Burning

Class C

ASTM D1037: Dimensional Stability

•Linear Expansion (3-ply): Parallel -0.09% / Perpendicular -0.07%
•Thickness Swell (3-ply): -0.3%
Screw Hold (3-ply) (face/back/edge)
• 1009lbs/ 681 lbs/ 516 lbs average

ASTM D4442: Moisture Content

6-9% average

ASTM D 6007-02: Formaldehyde Concentration in Air from Wood Products,
small chamber test

Plyboo = 0.004 ppm (surpasses CARB II standards, 0.05ppm &
ULEF standards of 0.04ppm)

Strand Bamboo Flooring

Dimensions:

9/16” x 3 3/4” x 72” – 14mm x 96mm x 1830mm

Installation:

Tongue and Groove, glue down

ASTM E648:Critical Radiant Flux:

Class 1

ASTM D1037: Dimensional Stability

Linear Expansion: Parallel -0.02%, Perpendicular -0.23%, Thickness Swell -0.25%,
Hardness (Janka Ball Test): 3,500 lbf average

ASTM D2394: Coefficient of Friction

Static Coefficient / Dynamic (Sliding) Coefficient: 0.562 / 0.497

ASTM 4442: Moisture Content

6-9% average

ASTM D5116: Organic Emission
(CA Section 01350)

Classroom scenario/Office scenario: Pass/Pass
